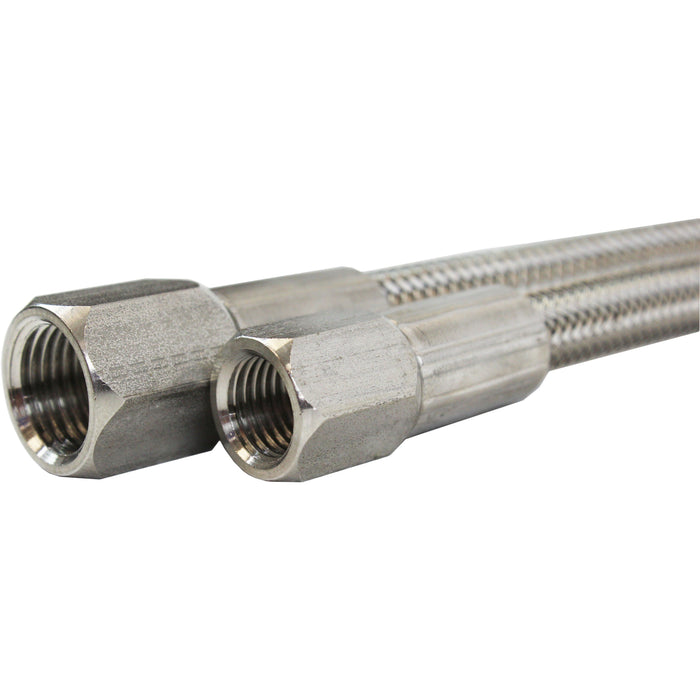

1/4" 37 Degree Female JIC Braided Stainless Steel Hose
1/4" 37 Degree Female JIC Braided Stainless Steel Hose
1/4" 37° Female JIC Stainless Steel PTFE Hose
These chemically resistant PTFE braided hoses are a necessity when dealing with harsh chemicals or solvents and high-pressure applications. They provide a uniquely rugged, durable, and chemically resistant combination of Stainless Steel and PTFE by having an inner core of PTFE and protecting that with a braided stainless steel outer sleeve. These hoses have female JIC swivel on each end and they DO NOT require Teflon tape to create a seal and they should always be tightened and untightened using 2 wrenches.
***Note: Do not exceed the specified hose bend radius or the inner PTFE liner will kink and the hose integrity will become compromised and should not be used.
Specifications:
| Connection Type(s): | 1/4" 37° Female JIC Swivel (7/16-20 Thread) |
| Liner Material | PTFE (Teflon) |
| Braid Material | 304 Stainless Steel |
| Swivel Material | 304 Stainless Steel |
| Temperature Rating | -94°F to 500°F (-70°C - 260°C) |
| Pressure Rating | 2100 PSI |
| Chemical Resistance | Excellent |
| Max Bend Radius | 3" |
